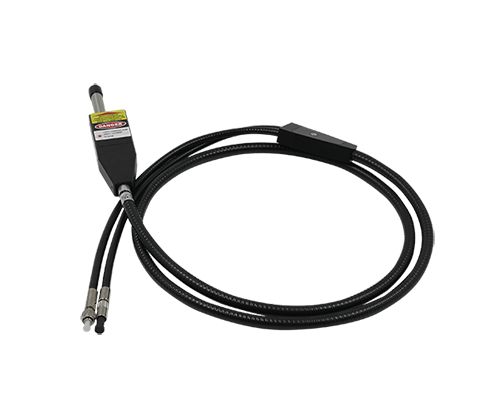

Model :RPB-785
Keyword :
400-820-7939
Technical Support：021-50687686
Coaxial optical path design, coupling efficiency > 80%, tail fiber withstand 50N tension, FC/SMA905 standard interface, good plug and pull consistency, Raman spectroscopy, experimental teaching.
◆ Spectrum range：150cm-1-4000cm-1；
◆ Cut-off depth>OD8；
◆ Initial beam consistency：start<150cm-1.
Specification |
|
| Item | Value |
| Product parameter | RPB-785-1.5-FS |
| Dimension | Main body：102×30×13 mm / Probe：45 Stainless steel |
| Outgoing fiber | 105μm core diameter，VIS-NIR waveband |
| Receiving fiber | 200μm core diameter，VIS-NIR waveband |
| The armor size of the combined part | Φ8.5mm,Outer black PVC |
| Wire harness | N.A. |
| Trigger device | N.A. |
| The light path control | N.A. |
| Connect laser terminal | FC/PC |
| Connect spectrometer terminal | SMA905 |
| Laser wavelength | 785nm |
| The tension 8.5mm sheath can withstand | 50N |
| Filter laser cutoff depth | OD8 |
| Spectrum range | 150cm-1～4000cm-1 |
| Probe working distance | 7.5 mm |
| Probe shot coupling efficiency | ≥80% |
| Humidity | 5%~80% |
