Model :RPB-D0-IS30
Keyword :D/0 Reflection Probe Reflectance measurements for paper, soil, vegetation, geology and glass
400-820-7939
Technical Support：021-50687686

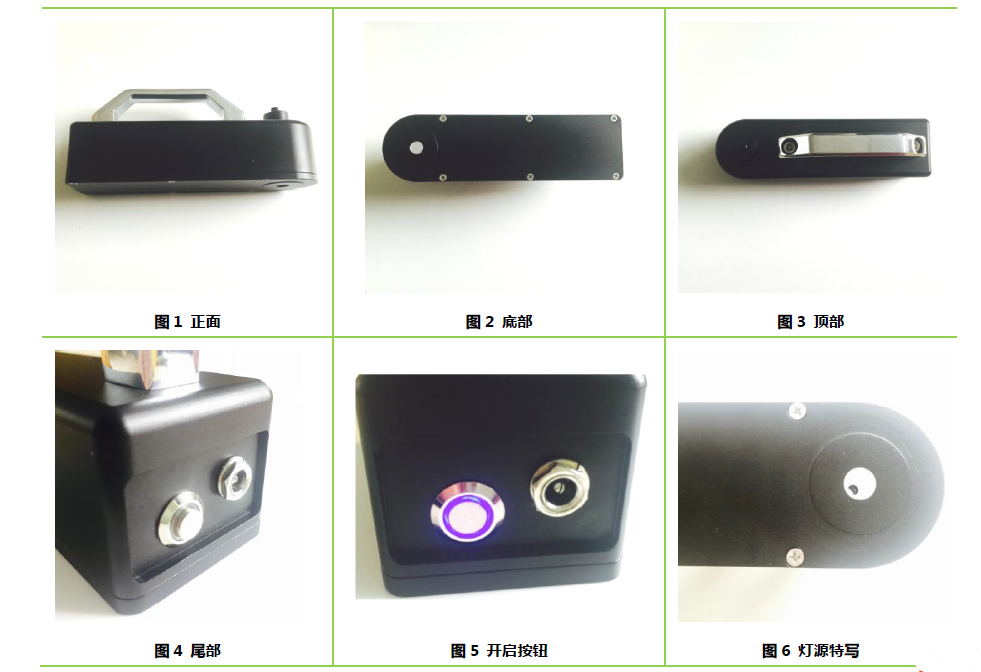

D/0 reflector is mainly used in the reflectivity measurement of paper making, building, soil, vegetation, mining and glass manufacturing industries and scenes. D/0 reflector has built-in halogen tungsten light source, drive circuit, battery and integrating ball.
◆ Compact and portable: built-in battery, light source and integrating sphere, which can be used in field work;
◆ High reflectivity: built-in integral sphere has high reflectivity, up to 92%-96% in the range of 350-2500nm;
◆ Durable: the lifetime of tungsten light source is up to 10000hrs.
Specification |
|
| Item | Value |
| Size | 180 X 50 X 79.5 mm |
| Weight | 750g |
| Sounding port diameter | Ф9mm |
| Integral sphere diameter | 30m |
| Integral sphere diameter | D/0 |
| Spectral range | 350-2500 nm |
| Bulb power | 5w |
| Bulb life | 10000 hrs |
| Spectral acquisition interface | SMA905 |
| Internal battery MAH | 3400mA |

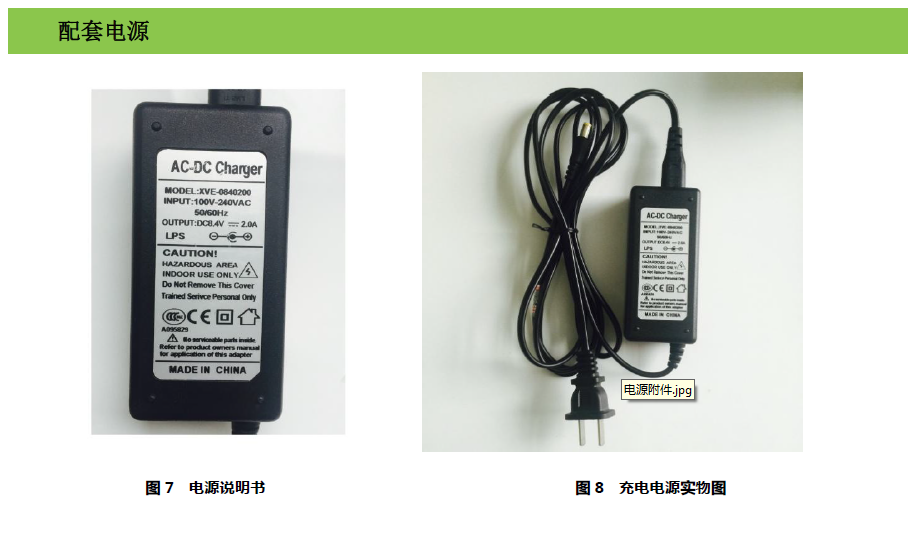

| Power requirement | 8.4V/2A |
| Temperature | 0-40℃ |
| Humidity | 5-80% |
